# Measurement Control#

We first prepare some utilities necessarily for the examples.

```from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np
import xarray as xr
from qcodes import ManualParameter, Parameter

import quantify_core.data.handling as dh
from quantify_core.measurement import MeasurementControl

meas_ctrl = MeasurementControl("meas_ctrl")

par0 = ManualParameter(name="x0", label="X0", unit="s")
par1 = ManualParameter(name="x1", label="X1", unit="s")
par2 = ManualParameter(name="x2", label="X2", unit="s")
par3 = ManualParameter(name="x3", label="X3", unit="s")
sig = Parameter(name="sig", label="Signal", unit="V", get_cmd=lambda: np.exp(par0()))
```

## Comparing iterative and batched execution loop#

### Iterative settables only#

```par0.batched = False
par1.batched = False
par2.batched = False

sig.batched = False

meas_ctrl.settables([par0, par1, par2])
meas_ctrl.setpoints_grid(
[
np.linspace(0, 1, 4),
np.linspace(1, 2, 5),
np.linspace(2, 3, 6),
]
)
meas_ctrl.gettables(sig)
dset = meas_ctrl.run("demo")
list(xr.plot.line(xi, label=name) for name, xi in dset.coords.items())
plt.gca().legend()
```
```Starting iterative measurement...
```
```<matplotlib.legend.Legend at 0x7f5830243dc0>
```

### Batched settables only#

Note that the settable with lowest `.batch_size` will be correspond to the innermost loop.

```par0.batched = True
par1.batch_size = 8
par1.batched = True
par1.batch_size = 8
par2.batched = True
par2.batch_size = 4

sig = Parameter(name="sig", label="Signal", unit="V", get_cmd=lambda: np.exp(par2()))
sig.batched = True
sig.batch_size = 32

meas_ctrl.settables([par0, par1, par2])
meas_ctrl.setpoints_grid(
[
np.linspace(0, 1, 3),
np.linspace(1, 2, 5),
np.linspace(2, 3, 4),
]
)
meas_ctrl.gettables(sig)
dset = meas_ctrl.run("demo")
list(xr.plot.line(xi, label=name) for name, xi in dset.coords.items())
plt.gca().legend()
```

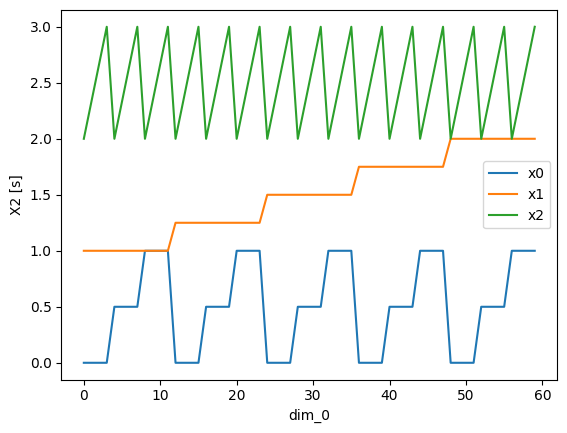

```Starting batched measurement...
Iterative settable(s) [outer loop(s)]:
--- (None) ---
Batched settable(s):
x0, x1, x2
Batch size limit: 4
```
```<matplotlib.legend.Legend at 0x7f57fa742910>
```

### Mixed batched and iterative settables#

Note that the settable with lowest `.batch_size` will be correspond to the innermost loop. Furthermore, the iterative settables will be the outermost loops.

```par0.batched = False
par1.batched = True
par1.batch_size = 8
par2.batched = False
par3.batched = True
par3.batch_size = 4

sig = Parameter(name="sig", label="Signal", unit="V", get_cmd=lambda: np.exp(par3()))
sig.batched = True
sig.batch_size = 32

meas_ctrl.settables([par0, par1, par2, par3])
meas_ctrl.setpoints_grid(
[
np.linspace(0, 1, 3),
np.linspace(1, 2, 5),
np.linspace(2, 3, 4),
np.linspace(3, 4, 6),
]
)
meas_ctrl.gettables(sig)
dset = meas_ctrl.run("demo")
list(xr.plot.line(xi, label=name) for name, xi in dset.coords.items())
plt.gca().legend()
```

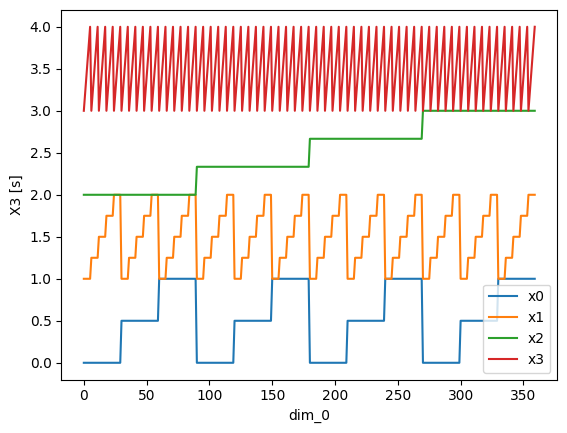

```Starting batched measurement...
Iterative settable(s) [outer loop(s)]:
x0, x2
Batched settable(s):
x1, x3
Batch size limit: 4
```
```<matplotlib.legend.Legend at 0x7f57f951d940>
```

## Instrument Monitor#

You can instantiate an instrument monitor in the following way:

```from quantify_core.measurement import MeasurementControl
from quantify_core.visualization import InstrumentMonitor

instrument_monitor = InstrumentMonitor("instrument_monitor")
# Set True if you want to query the instruments about each parameter
# before updating the window. Can be slow due to communication overhead.
instrument_monitor.update_snapshot(False)
```
